The suppressed short-barreled rifle represents the apex of compact firepower, but building one that functions reliably requires understanding interactions between barrel length, gas system dynamics, and suppressor back-pressure that most shooters never consider.
I’ve assembled enough of these configurations to recognize that slapping a can on a short barrel creates problems as often as it solves them. The difference between a suppressed SBR that runs flawlessly and one that beats itself apart comes down to engineering decisions made during the build process.
This isn’t about bolting parts together and hoping for the best. It’s about understanding why certain combinations work and others fail spectacularly.
Barrel Length Reality Check
The barrel length you choose determines everything downstream. A 10.5-inch barrel in 5.56mm delivers roughly 2,400 fps with 55-grain ammunition, losing about 400 fps compared to a 16-inch barrel. That velocity loss matters less than most people assume for practical applications inside 200 yards, but it fundamentally changes how the gas system behaves.
Shorter barrels generate higher port pressure because there is less barrel length for the pressure to drop before reaching the gas port. This means more violent gas impulse hitting your bolt carrier, which gets amplified dramatically when you add suppressor back-pressure. I’ve seen 10.5-inch barrels that ran perfectly unsuppressed turn into overgassed nightmares with a can attached, battering extractors and shearing bolt lugs within a few thousand rounds.
The 11.5-inch length is the practical minimum for 5.56mm if you plan to run suppressed most of the time. You retain enough velocity for effective terminal performance while getting slightly more manageable gas dynamics. Going shorter than 10.3 inches with a suppressor attached creates a system so violently overgassed that no amount of tuning fully tames it.
For .300 Blackout, the calculations shift entirely. An 8-inch barrel delivers full powder burn with subsonic loads and maintains sufficient velocity with supersonics. The cartridge was designed specifically for short barrels and suppressors, as shown by how well these builds run compared to shorty 5.56 configurations. My 9-inch .300 Blackout SBR with a suppressor shoots quieter than a suppressed 16-inch 5.56 rifle.
Gas System Configuration
Standard carbine-length gas systems on barrels under 11.5 inches typically create timing problems that suppressors exacerbate. The gas port sits too close to the chamber, pressure remains too high at port timing, and adding a suppressor turns this into a parts-breaking proposition.
Adjustable gas blocks solve this problem. A quality unit like the Superlative Arms, JP Enterprises, and similar manufacturers allows you to tune gas flow for both suppressed and unsuppressed shooting. I set mine to run reliably unsuppressed, then open the adjustment slightly when shooting with a can. This prevents the violent overgassing that destroys brass, accelerates bolt wear, and fills your receiver with carbon fouling.
The alternative is to properly size your gas port during barrel manufacturing or to have a competent gunsmith modify an existing port. This requires understanding the specific suppressor you’ll run, the ammunition pressure characteristics, and your desired reliability margin. I generally avoid this route because it commits you to one configuration without flexibility for different cans or shooting conditions.
Enhanced bolt carriers with additional mass can also help manage timing on overgassed systems, though they’re treating symptoms rather than causes. Some examples include the Bootleg adjustable carrier and the Young Manufacturing enhanced carrier. While both can help with suppressed shooting, neither will match the effectiveness of simply controlling gas at the source.
Suppressor Selection and Mounting
Not all suppressors work equally well on short-barreled rifles. Flow-through designs like the Huxwrx Flow reduce back-pressure significantly compared to traditional baffle-stack cans. This matters enormously on SBRs, where you’re already fighting elevated port pressure.
Shooting a traditional baffle-stack 5.56 can on a 10.5-inch SBR often causes ejection patterns at 1 o’clock, heavy carbon buildup, and torn case rims within 200 rounds. Switching to a flow-through design moves ejection to 3 o’clock, dramatically reduces fouling, and eliminates most extraction issues. The sound signature difference is negligible, but the reliability improvement is usually night-and-day.
Mounting systems create another decision point. Quick-detach mounts add length and weight but provide flexibility for moving suppressors between hosts. Direct-thread mounts minimize length and eliminate potential baffle strikes from mount-induced misalignment, but you’re committed to one host for the duration of your shooting session.
For dedicated SBR builds, I prefer direct-thread mounts using quality thread protectors and anti-seize compound. The simplicity and reliability outweigh the inconvenience of infrequent suppressor swaps. On rifles that split duty between suppressed and unsuppressed shooting, QD mounts make more sense despite their compromises.
Check alignment religiously. Short barrels with thin profiles can flex under heat, and suppressors magnify any concentricity issues. I use an alignment rod on every new build and recheck periodically. A baffle strike on an SBR typically happens at the first or second baffle, where the pressure spike is highest, and the results are catastrophic for both the can and potentially the shooter.
Specific Suppressor Recommendations for SBR Builds
The suppressor market has evolved significantly, with manufacturers finally recognizing that back-pressure management matters as much as decibel reduction for short-barreled applications.

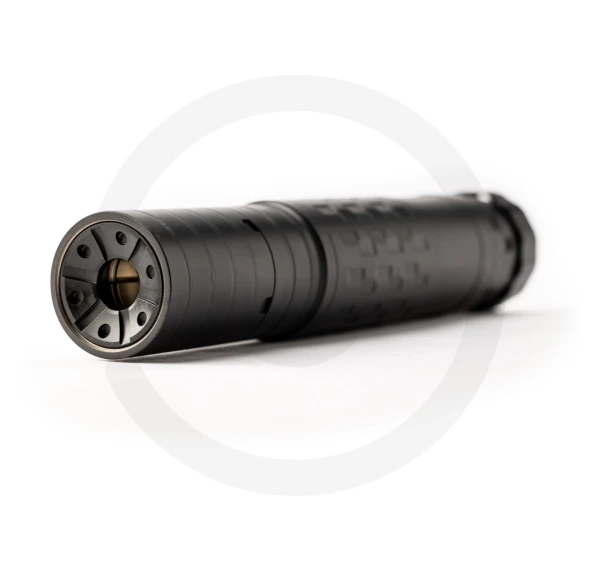

The SureFire SOCOM556-RC2 remains the gold standard for 5.56mm SBRs, particularly for users who prioritize durability and mounting system reliability. The fast-attach mounting system locks up tight every time, and I’ve never experienced the point-of-impact shift that plagues some QD designs. Sound suppression measures around 136 decibels at the ear on my 10.5-inch barrel, which isn’t the quietest available but represents an excellent balance between signature reduction and back-pressure management. The RC2 doesn’t beat up your gun the way some ultra-quiet baffle-stack designs do.
For shooters prioritizing back-pressure reduction above all else, the HUXWRX Flow 556K delivers performance that traditional suppressors simply cannot match. The flow-through design reduces back-pressure by roughly 70% compared to conventional cans, which transforms how short-barreled rifles function. The sound signature runs slightly louder than the RC2, measuring around 138 decibels, but the reliability improvement and reduced gas blowback justify that tradeoff for serious use guns.
The Rugged Razor 556 occupies an interesting middle ground. It’s not the quietest, not the lowest back-pressure, and not the lightest, but it combines good performance across all metrics with bombproof construction and a user-serviceable design. The Razor measures around 135 decibels on a 10.5-inch test platform, and back-pressure sits between traditional designs and flow-through models. Rugged’s mount system is reliable if not quite as refined as SureFire’s, and the price point makes this an excellent value proposition.
Multi-caliber suppressors make sense for shooters running multiple SBR platforms or wanting maximum versatility from a single tax stamp. The SilencerCo Hybrid 46M handles everything from 5.56mm through .45-70 Government with its modular design, allowing both full-length and short configurations while maintaining reasonable back-pressure characteristics. The versatility comes with weight and length penalties compared to dedicated rifle cans, but spreading one $200 tax stamp across multiple hosts appeals to budget-conscious builders.
The Rugged Alaskan 360 takes multi-caliber capability even further, rated for everything up to .375 H&H Magnum while maintaining relatively compact dimensions. The Alaskan’s robust construction handles the pressure and heat that short barrels generate without the degradation some lightweight cans experience. For hunters building suppressed SBRs alongside larger-caliber hunting rifles, the Alaskan provides legitimate big-bore capability in a package that still functions well on intermediate cartridges.
Selecting the right suppressor for your SBR build depends heavily on intended use and priorities. Hard-use defensive rifles benefit from the RC2’s durability and mount reliability. Precision-minded shooters who want minimum system disruption should consider the Flow 556K despite its premium price. Budget builders looking to cover multiple platforms with one stamp gravitate toward the Hybrid 46M. There’s no single perfect answer, but understanding how each design philosophy affects your specific build prevents expensive mistakes.
Buffer System Tuning
The buffer and spring work together with your gas system to properly time the action. Standard carbine buffers often prove too light for suppressed SBR use, allowing the bolt to cycle too quickly and beat up the buffer retainer, receiver extension threads, and lower receiver itself.
For example, you can run an H2 buffer in a 10.5-inch 5.56 SBR with an adjustable gas block set for proper suppressed operation. This combination delivers 4 o’clock ejection, reliable feeding with multiple magazine types, and minimal felt recoil despite the short sight radius amplifying muzzle movement.
Heavier H3 buffers sometimes overdo it, creating short-stroking issues when shooting unsuppressed or with reduced-power loads. The goal isn’t maximum buffer weight but rather optimal timing for your specific gas system configuration and suppressor combination.
Spring selection matters too. Standard carbine springs work for most applications, but some builders prefer Sprinco or Tubbs springs for more consistent performance across temperature ranges. I’ve found standard springs adequate after proper gas system tuning, though upgrading the spring makes sense if you’re experiencing consistency issues.
Practical Build Specifications
A good example of a working SBR configuration I’ve shot has an 11.5-inch Ballistic Advantage barrel with a carbine-length gas system, Superlative Arms adjustable gas block, and Aero Precision upper and lower receivers. The bolt carrier is a standard Toolcraft unit, and I run an H2 buffer with a standard spring. Suppressor duty rotates between a SureFire RC2 and a CGS Helios, both mounted via their respective QD systems.
This setup required minimal tuning to run reliably. I adjusted the gas block to where it would just barely lock back on empty with the lightest ammunition I planned to shoot unsuppressed, then verified it ran flawlessly with the suppressor attached using the same ammo. The rifle has eaten everything from steel-case Wolf to match-grade handloads without hiccups across roughly 3,000 rounds.
The .300 Blackout build proved even simpler. A 9-inch Ballistic Advantage barrel with a pistol-length gas system, standard carbine buffer, and Dead Air Sandman-S runs both subsonic and supersonic loads without adjustment. The cartridge’s design for short barrels and suppressors eliminates most of the gas system drama that plagues shorty 5.56 builds.
Heat Management and Barrel Life
Suppressed SBRs generate tremendous heat in concentrated areas. The short barrel heats quickly, and the suppressor traps thermal energy that would usually dissipate. After 90 rounds of rapid-fire drills, my 10.5-inch upper glows visibly in dim light, and the suppressor stays too hot to touch for 20 minutes.
This heat accelerates throat erosion and affects accuracy faster than you’d experience with a 16-inch barrel. I’ve seen accuracy degrade around 4,000 rounds on an 11.5-inch barrel, compared to roughly 8,000 rounds on a similar 16-inch barrel fired at comparable rates. The suppressor contributes to this by keeping heat concentrated in the throat area longer.
Barrel profile helps manage this somewhat. Heavier profiles like government or SOCOM contours maintain accuracy longer under heat than pencil-thin profiles, though they add weight that partly defeats the purpose of building a compact rifle. I like to compromise with mid-weight profiles that balance handling characteristics against durability.
The Sound Signature Reality
Suppressed SBRs usually don’t achieve the hearing-safe sound levels that longer barrels deliver. The shorter barrel means less time for powder to burn completely, resulting in more muzzle blast and flash when the bullet exits.
Even with an excellent suppressor, a 10.5-inch 5.56 SBR measures around 138 decibels at the shooter’s ear, well above the 140-decibel threshold for hearing damage.
I wear electronic hearing protection when shooting this rifle despite the suppressor. The can reduces sound and concussion enough to make the shooting experience dramatically more pleasant than unsuppressed fire, but it’s not hearing-safe in the technical sense. Anyone suggesting otherwise is either measuring incorrectly or lying.
The .300 Blackout configuration tells a different story. With subsonic ammunition, my 9-inch barrel delivers genuinely hearing-safe performance around 128 decibels. Supersonic .300 Blackout isn’t dramatically quieter than 5.56mm, but the subsonic capability makes this caliber the clear choice if maximum sound reduction matters for your application.
Legal and Practical Considerations
Every suppressed SBR represents two registered NFA items requiring separate tax stamps and regulatory compliance. The interstate transport restrictions apply to the SBR but not the suppressor, creating an asymmetric compliance burden. I’ve found that most law enforcement officers don’t understand this distinction, which makes carrying proper documentation for both items non-negotiable.
The weight and bulk of adding a suppressor to an already short rifle significantly change handling characteristics. My 10.5-inch SBR weighs 7.2 pounds unsuppressed and 8.4 pounds with the RC2 attached. The suppressor adds 6 inches to overall length, which matters when maneuvering in vehicles or tight spaces. The balance point shifts forward, affecting weapon presentation and fatigue during extended use.
These aren’t dealbreakers, but they’re real considerations that affect whether a suppressed SBR actually serves your needs better than alternatives. The configuration excels for vehicle defense, property security, and situations requiring maximum firepower in minimum space. For general-purpose use or longer-range applications, a standard 16-inch rifle often makes more practical sense.
Building It Right
The suppressed SBR requires more careful component selection and tuning than either a standard rifle or an unsuppressed SBR. The interaction between short barrel dynamics and suppressor back-pressure creates engineering challenges that half-measures don’t solve. Adjustable gas blocks aren’t optional luxuries for these builds. They’re fundamental requirements for reliable function and acceptable component longevity.
I’ve seen enough rifles built the wrong way to recognize the patterns that predict problems. Prioritizing suppressor selection for back-pressure characteristics over pure sound reduction pays dividends in reliability. Accepting that short 5.56mm barrels will never be truly hearing-safe lets you make rational choices about hearing protection and realistic performance expectations.
The result, when done properly, is the most versatile compact rifle configuration available. The engineering matters, the details matter, and the difference between a reliable suppressed SBR and an expensive malfunction generator comes down to understanding why these systems behave the way they do.
